Product Advantage
B1 Fire-Rated Core – Meets EN 13501-1 Class B-s1,d0 standards, limiting flame spread (<35% smoke density) and maintaining structural integrity at 400°C for 30 minutes.
Halogen-Free Material – Made with magnesium hydroxide flame retardants (0% halogen/PVC), ensuring compliance with both REACH SVHC and RoHS 3 regulations.
Thermal Break Design – Features an integrated air cavity that reduces thermal bridging (U-value 0.48 W/m²K), improving energy efficiency in curtain wall applications.
Aesthetic-Structural Unity – Precision-milled shadow gaps (2mm±0.3) allow for smooth multi-panel alignment, compatible with concealed fastener systems.
Technical Parameters
Model NO. | ET9888 | Specification | 233.5*32.2mm |
Color | Customized | Environmental Standard | E0 |
Usage | Household, Outdoor, Commercial | Pattern | Wood Grain |
Material | 60% Wood+ 30% HDPE+ 10% Additives | Certification | CE. ISO. SGS,FSC,Intertek |
Length | 2.2m/ 2.9m/ 3.6m or Customized | Working Environment | -40~70 Degrees Celsius |
Product Details

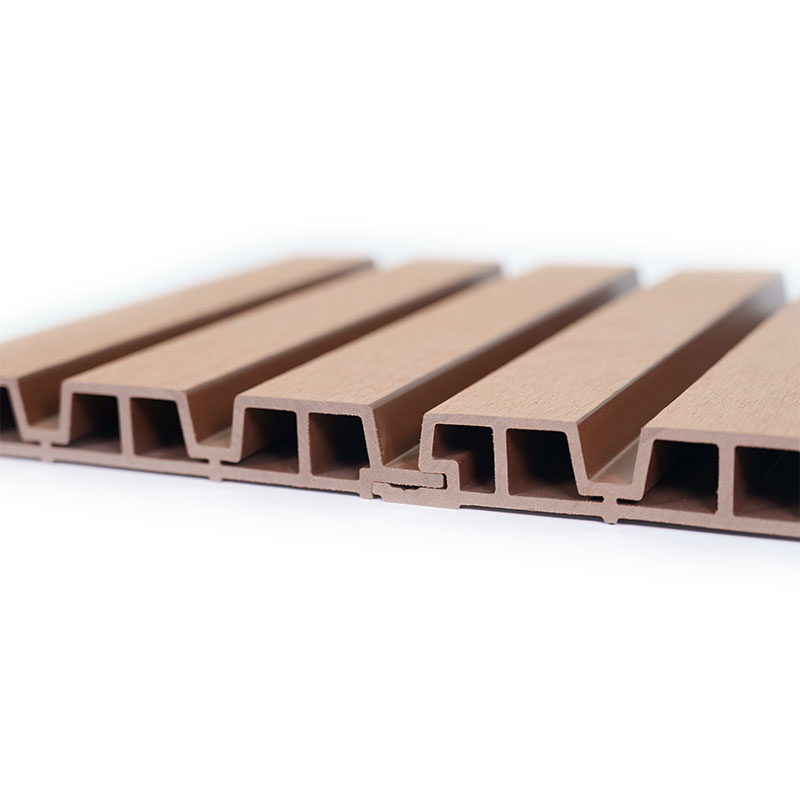

The ET9888 model has dimensions of 233.5mm × 32.2mm. It is available in standard lengths of 2.2m, 2.9m, 3.6m, or custom sizes.
The decking is made from a blend of 60% wood, 30% HDPE, and 10% additives, ensuring strength and durability. It meets E0 environmental standards for low formaldehyde emissions.
The color is customizable to fit your design preferences. It is suitable for household, outdoor, and commercial applications.
Certifications include CE, ISO, SGS, FSC, and Intertek, confirming the product's high quality and safety. The decking is designed to perform well in temperatures from -40°C to 70°C, making it versatile for various environments.
FAQ
Q1. What is the fire rating of the 3D Wood Grain Emboss Wall Cladding?
The wall cladding features a B1 fire-rated core, meeting EN 13501-1 Class B-s1,d0 standards. It limits flame spread to less than 35% smoke density and maintains structural integrity at 400°C for up to 30 minutes.
Q2. Is the 3D Wood Grain Emboss Wall Cladding made from eco-friendly materials?
Yes, the cladding is made with halogen-free materials, using magnesium hydroxide flame retardants. This ensures compliance with both REACH SVHC and RoHS 3 regulations for environmental safety.
Q3. How does the thermal break design improve energy efficiency?
The wall cladding features an integrated air cavity that reduces thermal bridging. This design helps improve energy efficiency by offering a U-value of 0.48 W/m²K, ideal for curtain wall applications.
Q4. Can the cladding panels be aligned easily during installation?
Yes, the cladding panels feature precision-milled shadow gaps (2mm±0.3), allowing for smooth multi-panel alignment. It is compatible with concealed fastener systems for a clean and seamless appearance.
Q5. What are the size options available for the 3D Wood Grain Emboss Wall Cladding?
The ET9888 model is available in dimensions of 233.5mm × 32.2mm. It can be customized in lengths of 2.2m, 2.9m, and 3.6m, or according to specific project requirements.
Q6. Is the 3D Wood Grain Emboss Wall Cladding suitable for various environmental conditions?
Yes, the cladding is designed to perform well in a wide range of temperatures, from -40°C to 70°C. This makes it highly versatile and suitable for both outdoor and indoor applications in diverse environments.
