Hot, rain-prone regions can expose wall cladding to intense sunlight, elevated surface temperatures, wind-driven rain, and long periods of humidity—often within the same day. These conditions may affect color consistency, joint movement, drying time, fasteners, and concealed wall components, even when the visible surface resists moisture.
Choosing a co-extrusion WPC Wall Panel therefore involves more than comparing finishes or profiles. Buyers need to understand what the capped layer protects, how water drains behind the cladding, why ventilation and installation direction matter, and which details should be checked before and after installation.
Ultraviolet radiation primarily acts on exposed surface materials, while solar heating creates temperature-related movement throughout the panel and fixing system. UV radiation, heat, and moisture can work together to alter the appearance and properties of materials used outdoors. A capped WPC Wall Panel is intended to reduce the core’s direct exposure, yet the cap itself still experiences sunlight, airborne dirt, and changing temperatures.
Surface temperature can also be considerably less uniform than the surrounding air temperature. Sun-facing elevations, dark colors, unshaded upper walls, and panels located near reflective paving, glazing, or metalwork may heat more intensely than shaded areas. Daily heating and cooling then produce movement at board ends, joints, screws, clips, and corner trims. For this reason, expansion detailing should follow the selected profile, board length, installation direction, substrate, and expected site temperatures rather than a generic gap copied from another project.
Color selection deserves the same site-specific approach. A dark finish may suit the architectural concept but experience greater solar heating on an exposed elevation, while the same color may behave differently on a shaded courtyard wall. Designers should compare physical samples in both direct sunlight and shade and consider whether adjacent surfaces reflect additional heat onto the cladding. The objective is not to eliminate normal thermal movement, but to ensure that joints and fasteners can accommodate it without producing buckling, uneven gaps, or trim displacement.
Rain rarely reaches a façade in one predictable direction. Wind can push water into joints, corners, window heads, parapets, service penetrations, and transitions between different materials. Roof runoff, balcony drainage, ledges, and poorly directed landscape irrigation may add concentrated water loads that are more severe than ordinary rainfall on an uninterrupted WPC wall cladding surface.
Persistent humidity introduces a different problem because it slows drying after the rain stops. Damp shaded areas may retain dirt, support surface deposits, or remain visibly discolored longer than elevations exposed to moving air and sunlight. Rain penetration and exterior moisture are major enclosure concerns in hot-humid climates, while wetting and drying become more complicated when solar heat and air-conditioned interiors create changing vapor-pressure conditions.
Wet-dry cycling should therefore be understood as repeated exposure rather than permanent immersion. A façade may become wet during a storm, begin to dry, and then receive another round of rain, irrigation, or condensation before drying is complete. Over time, that sequence can reveal weaknesses around joints, cut ends, trims, and metal accessories even when the visible face of the WPC Wall Panel remains serviceable.
Local surroundings can be as important as the regional climate. Pool splash may carry treatment chemicals, garden irrigation can repeatedly wet the lower façade, and fertilizer, mulch, soil, or muddy runoff may leave persistent deposits. Walls beside paved areas can also receive splash-back containing fine grit that settles into textured surfaces.
Coastal salt exposure should only be added to the assessment when the property is genuinely located near the sea or another saline environment. Salt may be more relevant to screws, clips, trims, and subframes than to the visible composite board, particularly where water remains around connections. A corrosion-resistant WPC Wall Panel does not automatically make every metal component around it suitable for a marine site.
Climate Challenge | Possible Effect | Material or Design Response | Site Check |
Strong sunlight | Surface aging or uneven color change | Capped exposed face and suitable color selection | Compare orientation, shading, and reflected sunlight |
High surface temperature | Movement around joints and fixings | Movement-compatible joints and approved fastening system | Review long board runs, dark colors, and exposed elevations |
Wind-driven rain | Water reaching joints, openings, or corners | Drainage plane, flashing, and outward drainage path | Inspect windows, parapets, penetrations, and roof-wall junctions |
Persistent humidity | Slow drying, stains, or deposits | Clear drainage path and ventilated cavity where required | Check whether top and bottom openings are obstructed |
Splash zones | Local staining or accessory deterioration | Washable capped face and suitable trims or fasteners | Identify pools, sprinklers, soil, mulch, and paving |
Wet-dry cycling | Changing joints or recurring marks | Compatible joints, secure fixings, and accessible details | Examine board ends, lower edges, and transitions |

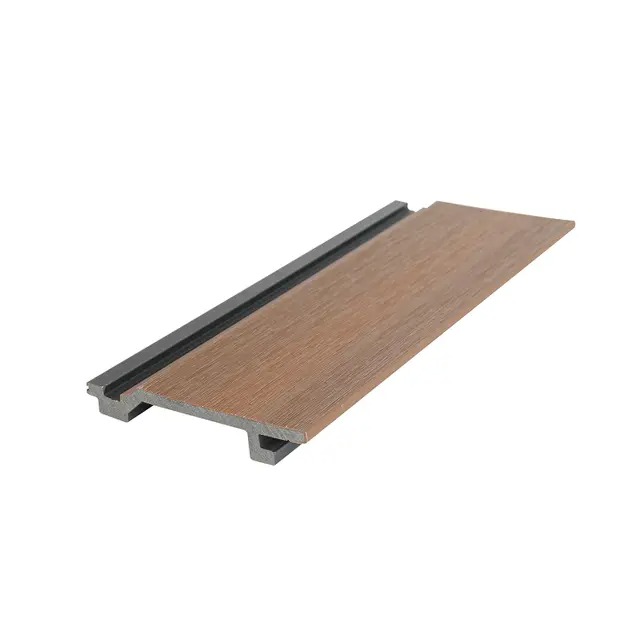

A co-extruded cap is a weather-facing layer fused to the WPC core during production. Its purpose is to reduce the core’s direct contact with sunlight, rain, staining substances, and routine surface contamination. EcoTechWood ET9209G uses a single-face co-extruded profile with customizable color, a nominal section of 218.5 × 25 mm, and standard or customized lengths, showing how the exposed face, section, and board length become connected procurement decisions.
Single-face construction makes installation orientation critical. The capped side must face outward consistently, including at corners, façade returns, replacement areas, and transitions between vertical and horizontal layouts. Installers should identify and mark the weather-facing surface before cutting because a reversed board exposes a different part of the product to the climate than the designer intended.
The cap still has clear limits. It cannot replace a continuous drainage plane, correct reverse-lapped flashing, reopen a blocked cavity, or make unsuitable fasteners corrosion resistant. Water may pass through joints or around openings even when the panel face resists direct wetting. Treating the co-extruded skin as a complete waterproofing system would therefore confuse surface protection with whole-wall water management.
The WPC core forms the body of the panel and influences handling, fixing behavior, edge treatment, and compatibility with clips and trims. Hollow or honeycomb sections may reduce material use or change board stiffness, but they are not automatically better suited to tropical climates than solid profiles. Selection depends on the exact geometry, intended fixing points, span between supports, edge details, and accessory system.
EcoTechWood ET9888 uses a honeycomb-type profile, customized colors, a nominal section of 233.5 × 32.2 mm, and several available length options. Those characteristics differ from the single-face co-extruded model, so the two products should not share installation drawings merely because both are described as WPC wall panels.
Cut hollow sections also require deliberate termination details. Open cavities may collect debris, expose unfinished edges, or complicate fixing if screws miss the intended structural zones. End covers and trims should match the selected profile rather than being chosen after installation begins.
Internal voids within a hollow WPC Wall Panel must not be confused with a ventilated cavity behind the cladding. The first is part of the manufactured board; the second is part of the wall assembly and provides a route for drainage and, where designed, drying airflow. One cannot substitute for the other.
Exterior cladding should be treated as the first water-shedding layer, not the wall’s only defense against moisture. A practical assembly normally includes the WPC cladding, battens or another support system, a drainage or ventilation space, a continuous water-resistive layer, and the structural wall. A drained wall system also needs flashing that directs water outward and openings that allow collected moisture to escape.
This arrangement assumes that some rain may pass behind the outer WPC Wall Panel. Once there, gravity should guide it downward along a continuous surface and back to the exterior. The drainage cavity between the cladding and the water-resistive barrier provides the space needed to direct liquid water outside.
Continuity matters most at interruptions. Window heads, door openings, sills, roof-wall intersections, parapets, balconies, service penetrations, and material transitions can break the normal drainage path. Flashing at these locations must connect with the water-control layer and direct water outward rather than behind adjacent components.
No single cavity dimension should be copied into every project. The required space varies with cladding type, wall construction, moisture exposure, and whether the cavity is intended mainly for drainage or also for ventilation. The correct arrangement must therefore be confirmed against the chosen WPC wall cladding system, local regulations, substrate, façade height, and project design.
A top termination should limit direct water entry while avoiding a detail that traps moisture behind the panels. At the base, water needs a visible or concealed outlet rather than a sealed trim that behaves like a trough. Protective screens may be needed at openings to reduce insect or debris entry, but they must not obstruct drainage.
Joints should be planned around panel length, fixing method, installation direction, corners, openings, and expected movement. Long runs of a WPC Wall Panel may require different joint planning from short decorative sections, while horizontal installation creates different water-shedding conditions from vertical installation. Changes in profile, color, or direction also need coordinated trims rather than improvised sealant joints.
Sealant is useful only when it belongs to a designed detail. Applying it indiscriminately across bottom openings, board ends, or cavity outlets can block the route that water is supposed to follow. Face-sealed joints are particularly risky when expected to provide the only defense against rain entering the wall.
Starter pieces, external and internal corners, end covers, and flashing profiles should be checked against the exact panel geometry. A trim that fits visually may still be too shallow, obstruct a joint, expose a hollow end, or prevent board movement. Reviewing these components on shop drawings is more reliable than solving conflicts after the façade has been partly installed.
Site control begins with confirming the weather-facing side of every single-face co-extruded board. Marked bundles, sample panels, installation drawings, and a completed mock-up can help prevent reversed boards or inconsistent grain direction. The same check should be repeated after cutting because offcuts and short return pieces are easier to install incorrectly.
Fasteners must engage the zones intended for the selected profile. Overtightening may restrict movement or distort the panel surface, while screws placed through unsupported parts of a hollow section may not provide the required hold. Battens, insulation, folded membranes, sealant, and construction debris should also be inspected so that none blocks the drainage path behind the WPC Wall Panel.
Metal selection should reflect the real site exposure. Ordinary rainy locations, pool surrounds, irrigated gardens, frequently cleaned commercial façades, and coastal buildings may require different levels of corrosion resistance. Compatibility between screws, concealed clips, trims, and metal subframes should be reviewed because staining or connection failure can begin in the accessory system even when the composite panel remains unaffected.
Façade height, wind pressure, substrate capacity, cavity barriers, fire-safety provisions, fastener pull-out resistance, and waterproofing details fall outside a general material description. These conditions must be checked against local codes, manufacturer instructions, engineering requirements, and the project’s approved wall design. A co-extruded surface cannot compensate for an underspecified support system or poor-quality installation.
A WPC Wall Panel for hot and rainy climates should be evaluated as part of the complete façade, not as an isolated weather-resistant surface. Co-extrusion can help protect the exposed face, but drainage paths, ventilation, flashing, joints, installation direction, and corrosion-resistant fasteners still determine how the wall performs over time. Zhejiang Kunhong New Material Co., Ltd. offers co-extrusion and hollow-profile wall cladding options that can support different project conditions. Careful profile selection and coordinated installation details can reduce moisture-related risks, simplify inspection, and make future maintenance more manageable.
